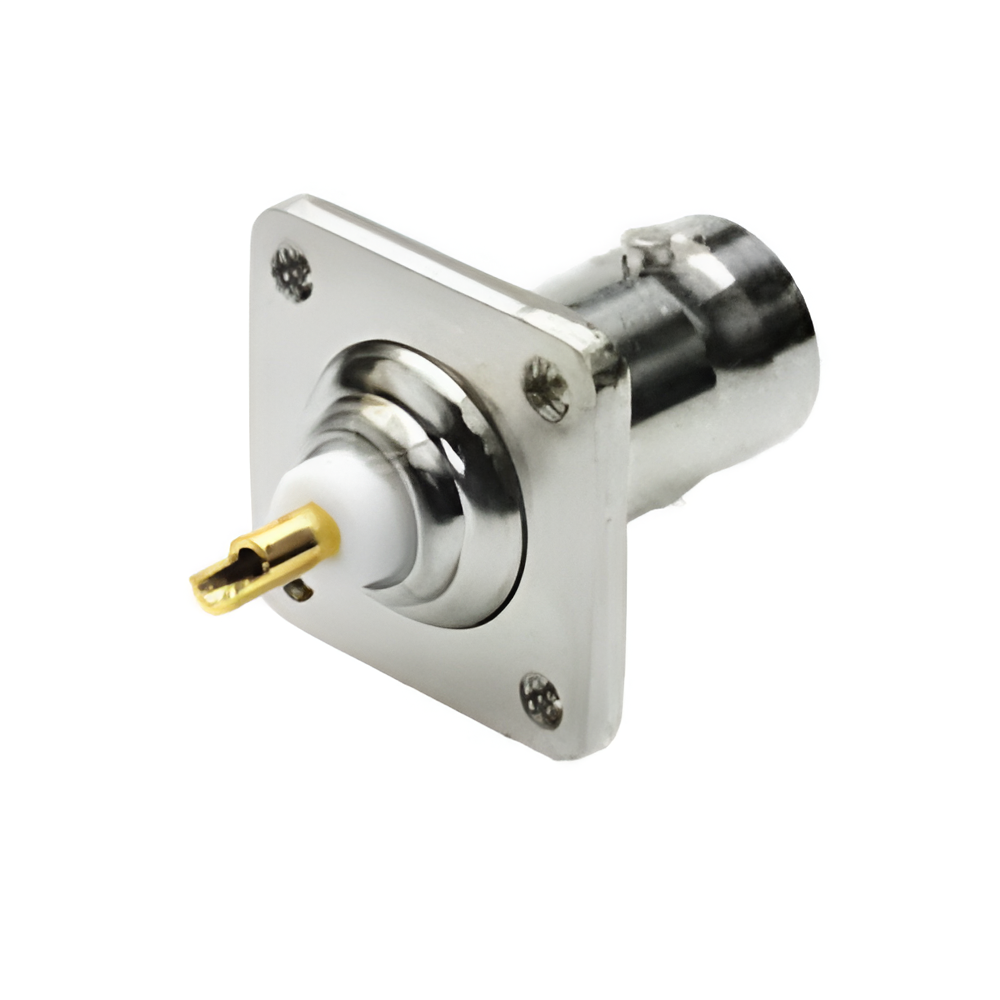

BNC Female 4 Hole (PACK OF 25)
Original price was: ₹999.00.₹800.00Current price is: ₹800.00.
Material Specification
Material Plating
Body Brass White Bronze
Insulator Teflon/PTFE –
Center Conductor Phosphor Copper Gold
Temperature Range – 10°C – +55 °C
Electrical Specification
Characteristic Impedance 50 ohm
Typical Frequency Range DC- 3 GHz
VSWR <1.2
Contact Resistance Inner Conductor : < 1.5m Ω
Outer Conductor : < 1 m Ω
Dielectric withstanding Voltage >2500V RMS, 50Hz, At sea Level
Dielectric Resistance > 5000 M Ω
RoHS Compliance
